Waveshare Industrial 8-Ch Analog Acquisition Module, 12-bit High-precision, Supports Voltage And Current Acquisition

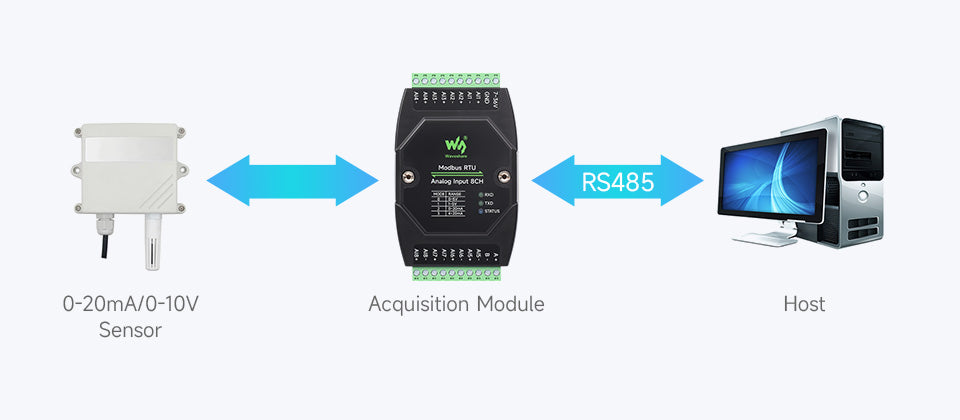

Modbus RTU Analog Input 8CH is an industrial standard analog acquisition module, supports multiple ranges and 8-ch simultaneous acquisition. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

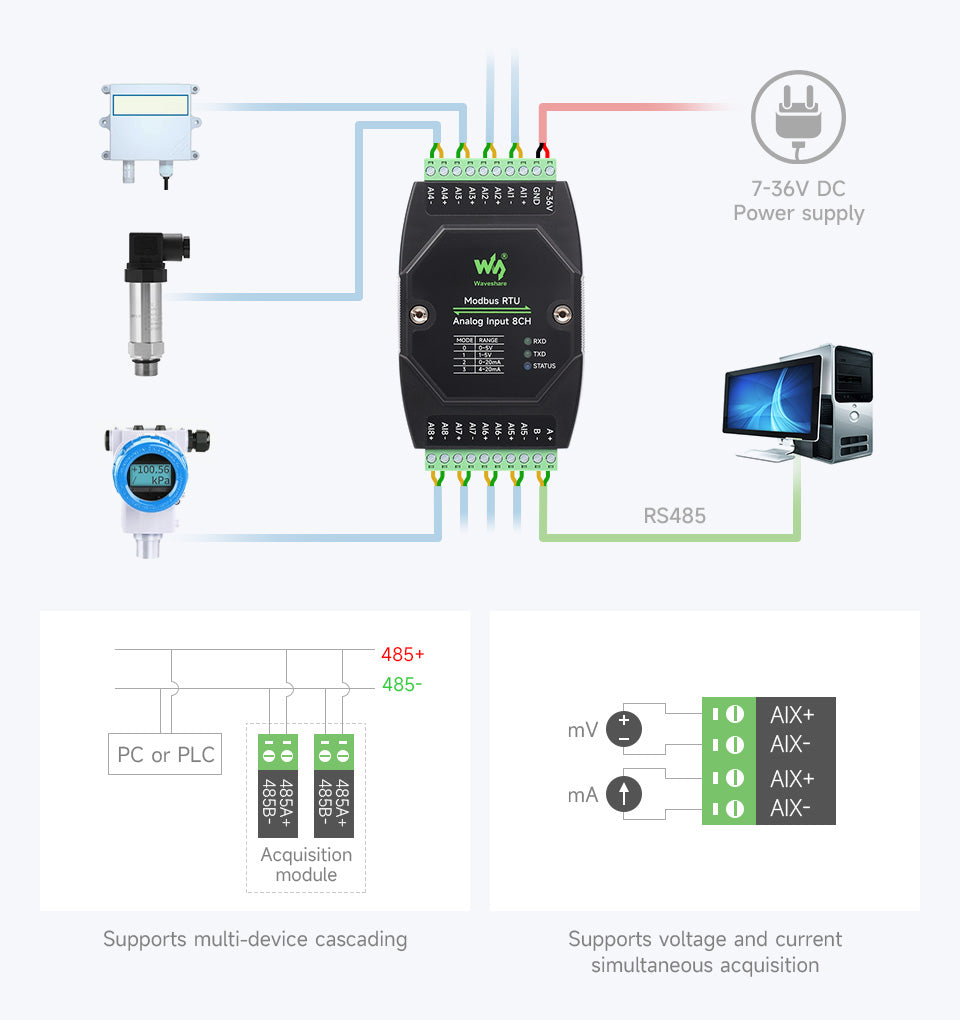

• Configurable device address (1~255), multi devices can be cascaded on RS485 bus

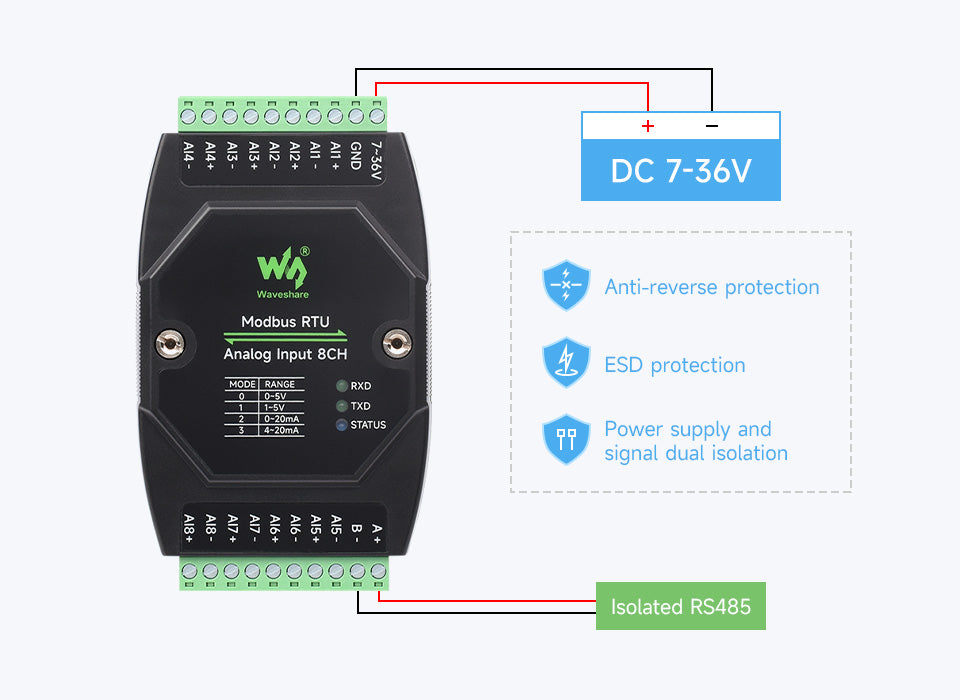

• Onboard voltage regulator, supports 7~36V wide range power supply

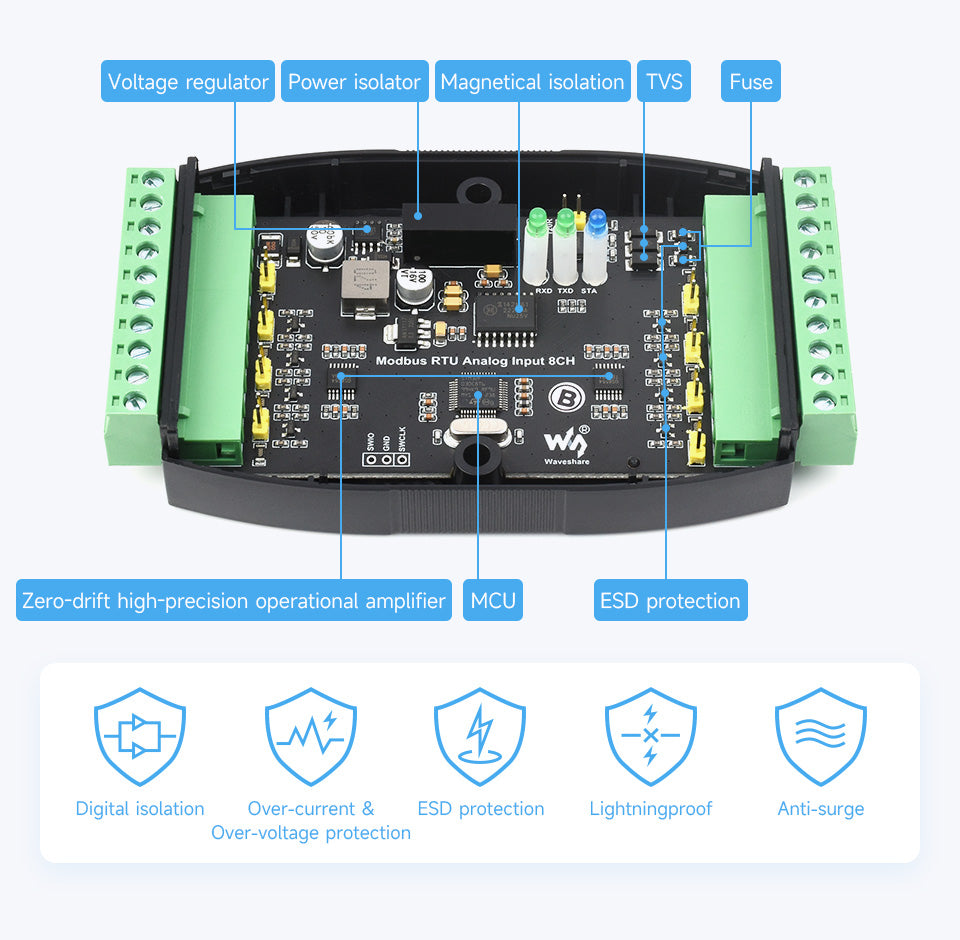

• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
• Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic

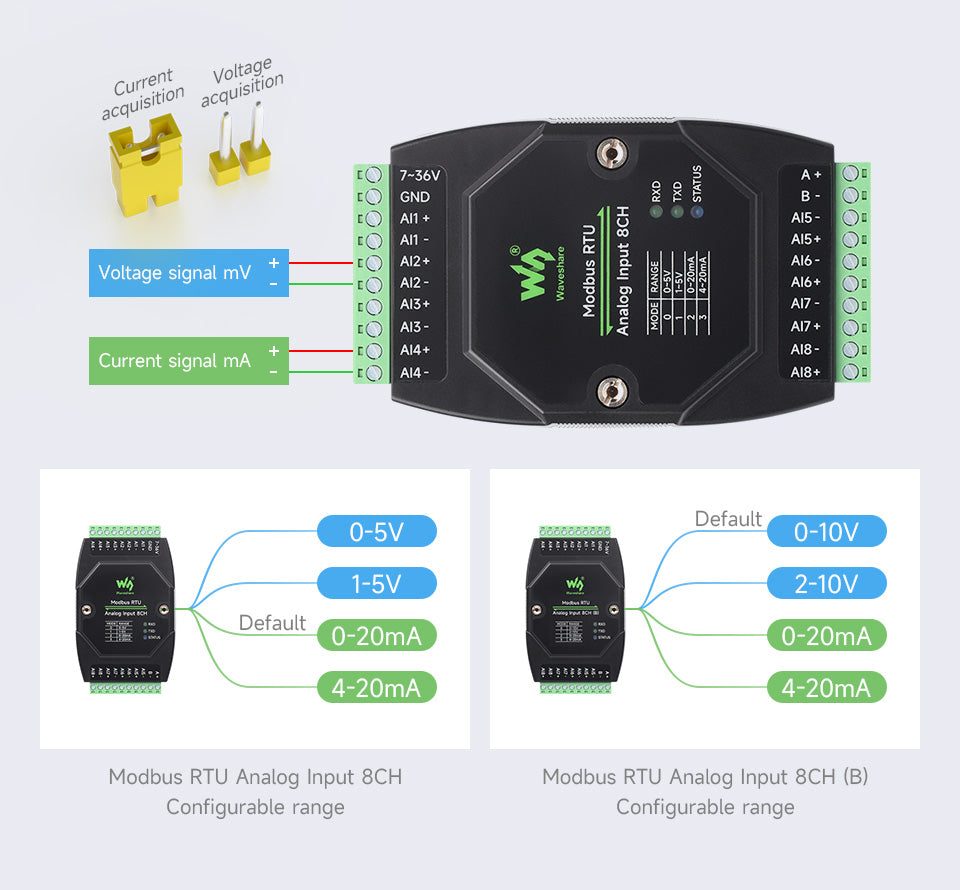

• Supports 12-bit high-precision acquisition with multiple range input modes, supports single-ended/differential input, supports voltage and current simultaneous acquisition
• Adopts high-precision resistors and zero-drift high-precision operational amplifier for more accurate data acquisition
• Built-in oversampling digital filtering algorithm, onboard watchdog, for stable output without crashing

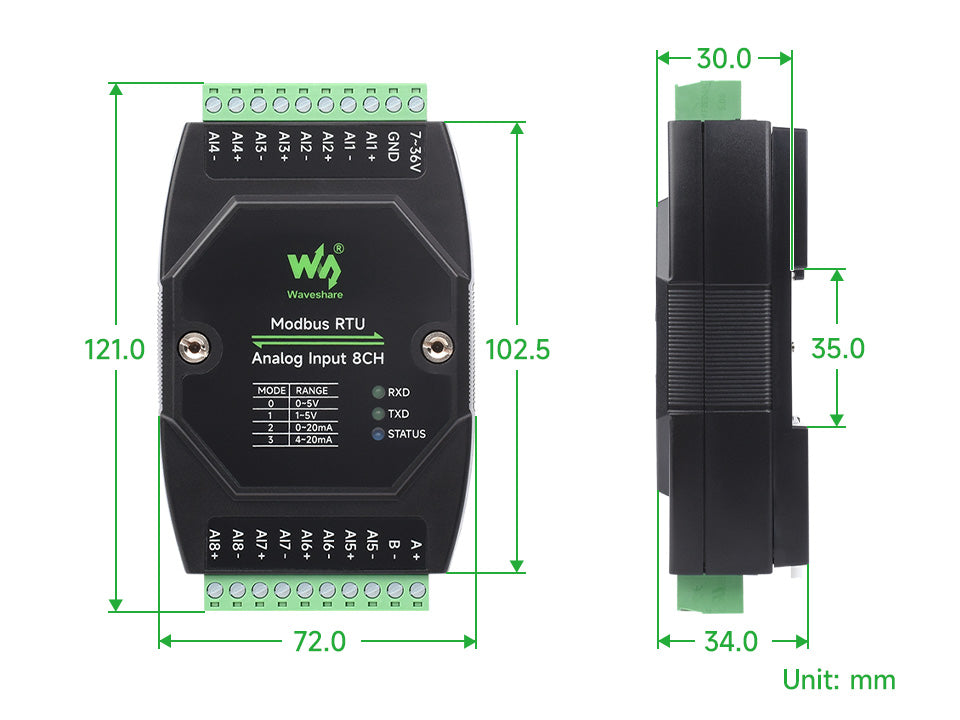

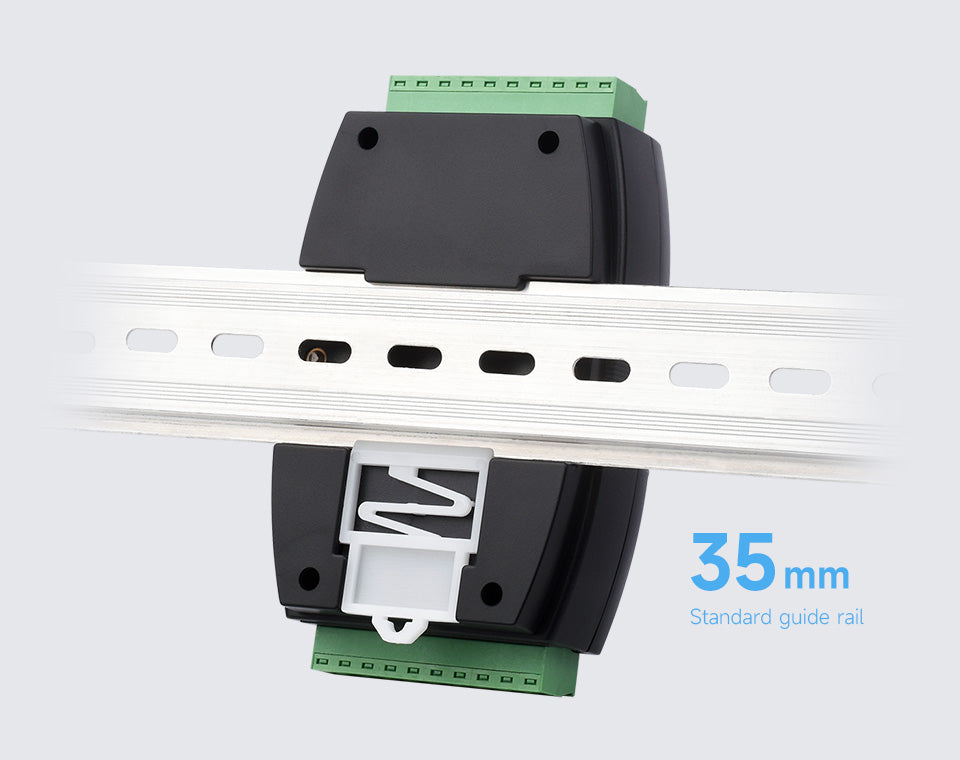

• Rail-mount case design, support stacking combination, easy to install and safer to use

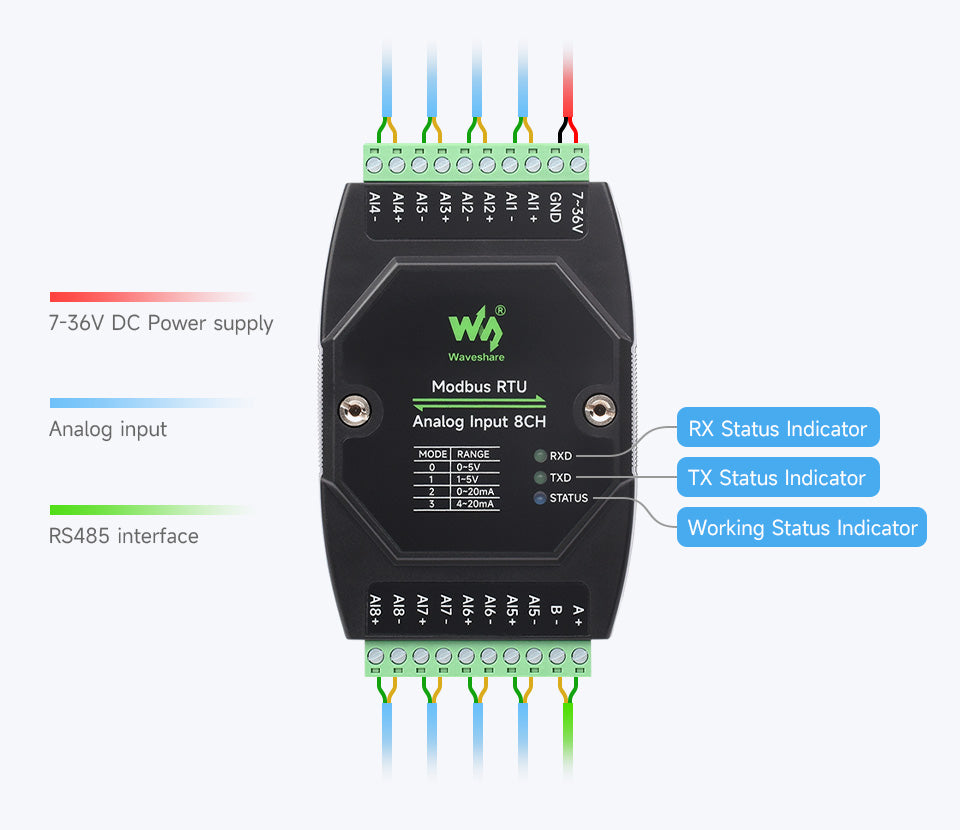

• 3x LEDs for indicating the MCU status and signal transceiving status
