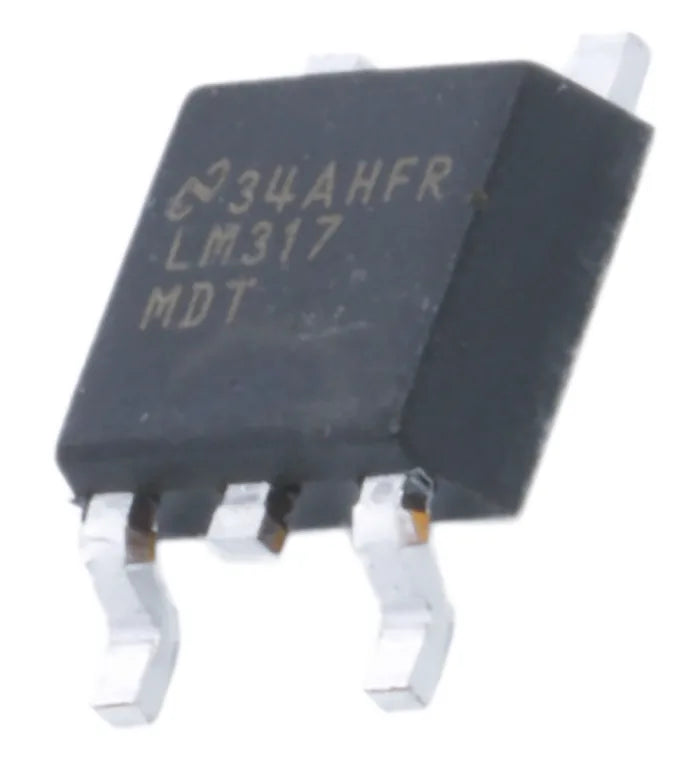

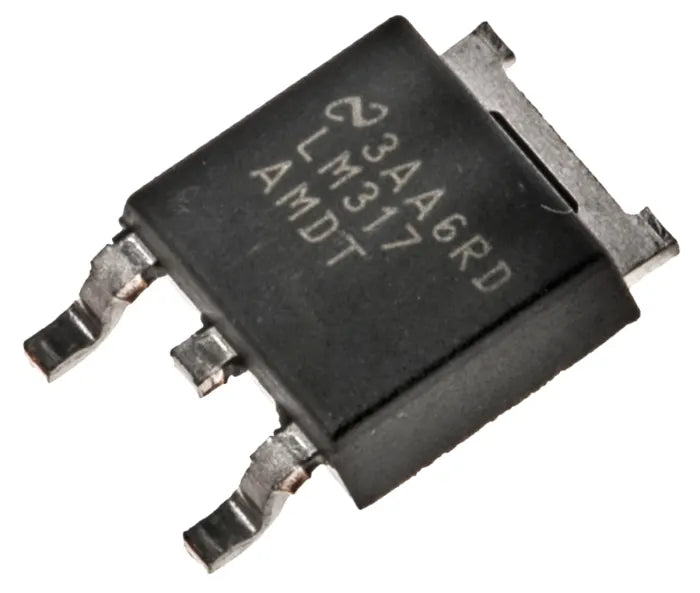

LM317MBSTT3G – 500mA Adjustable Output Positive Voltage Regulator IC

Maximum Output Current

500mA

Regulator Type

Linear Voltage

Output Voltage

1.2 → 37 V

Number of Outputs

1

Line Regulation

0.04 %/V

Load Regulation

0.5 %

Mounting Type

Surface Mount

Polarity

Positive

Package Type

TO-252

Pin Count

3

Reference Voltage

1.25V

Output Type

Adjustable

Dimensions

6.58 x 6.1 x 2.3mm

Minimum Operating Temperature

0 °C

Minimum Input Voltage

4.2 V

Maximum Operating Temperature

+125 °C

Maximum Input Voltage

40 V

Height

2.3mm

Length

6.58mm

Width

6.1mm
