• Stable and reliable chipset CP2102.
• USB specification 2.0 compliant with full-speed 12Mbps.
• Standard USB type A male and TTL 6pin connector.
• 6pins for 3.3V, RST, TXD, RXD, GND & 5V.
• Baud rates: 300 bps to 1.5 Mbps

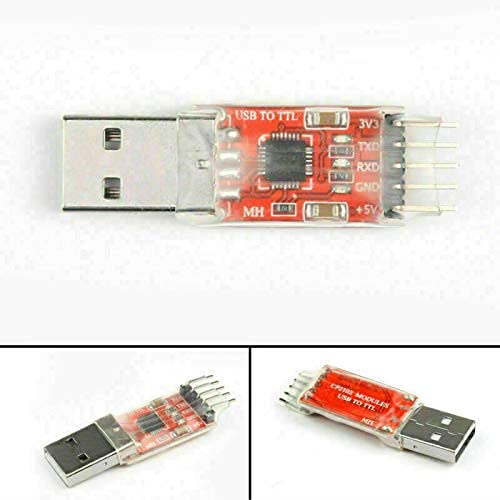

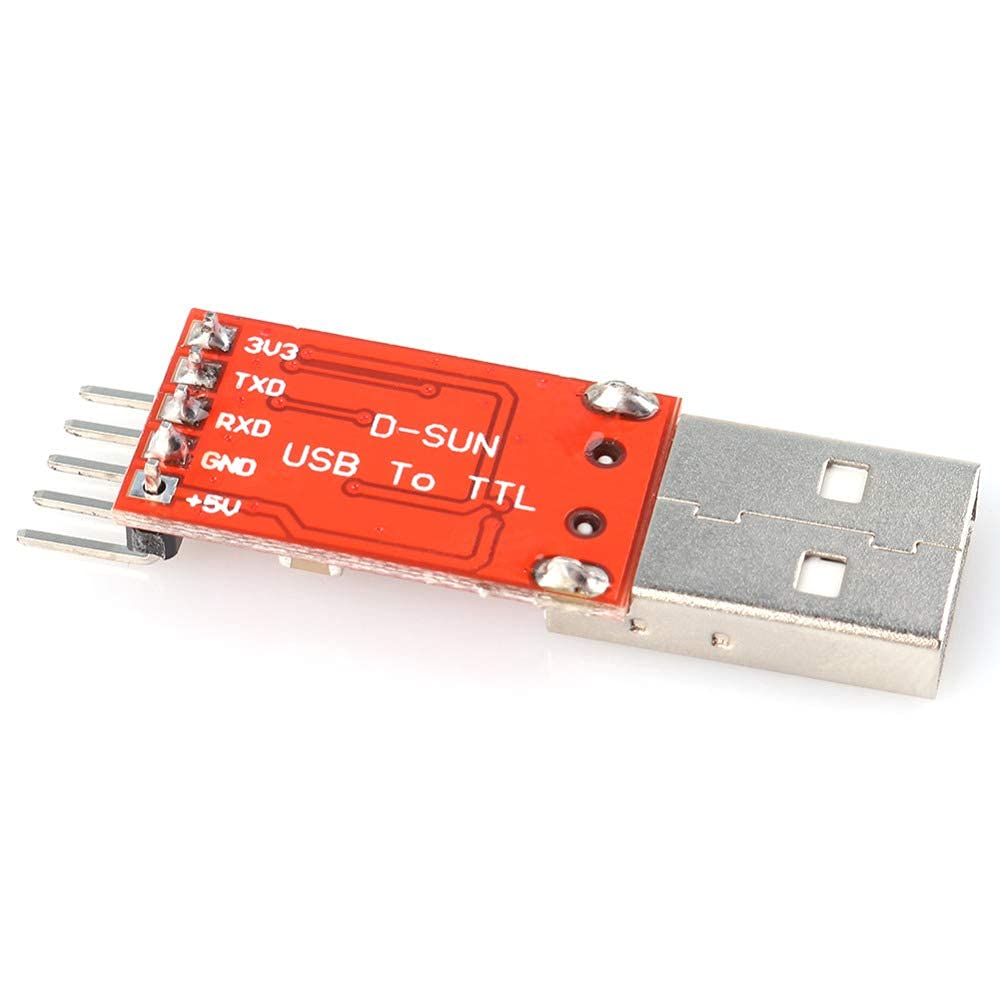

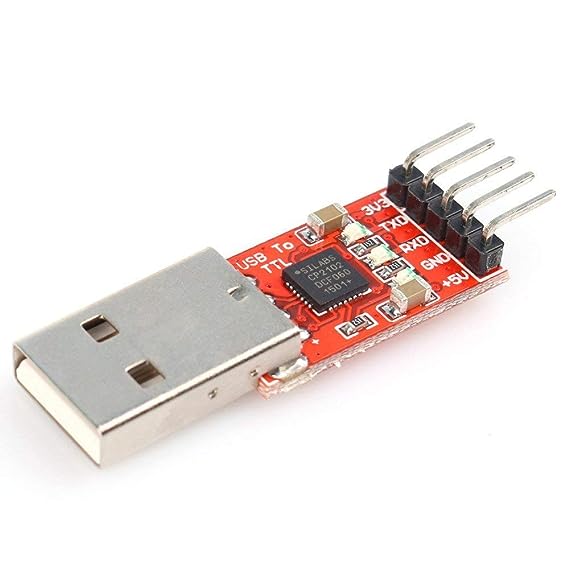

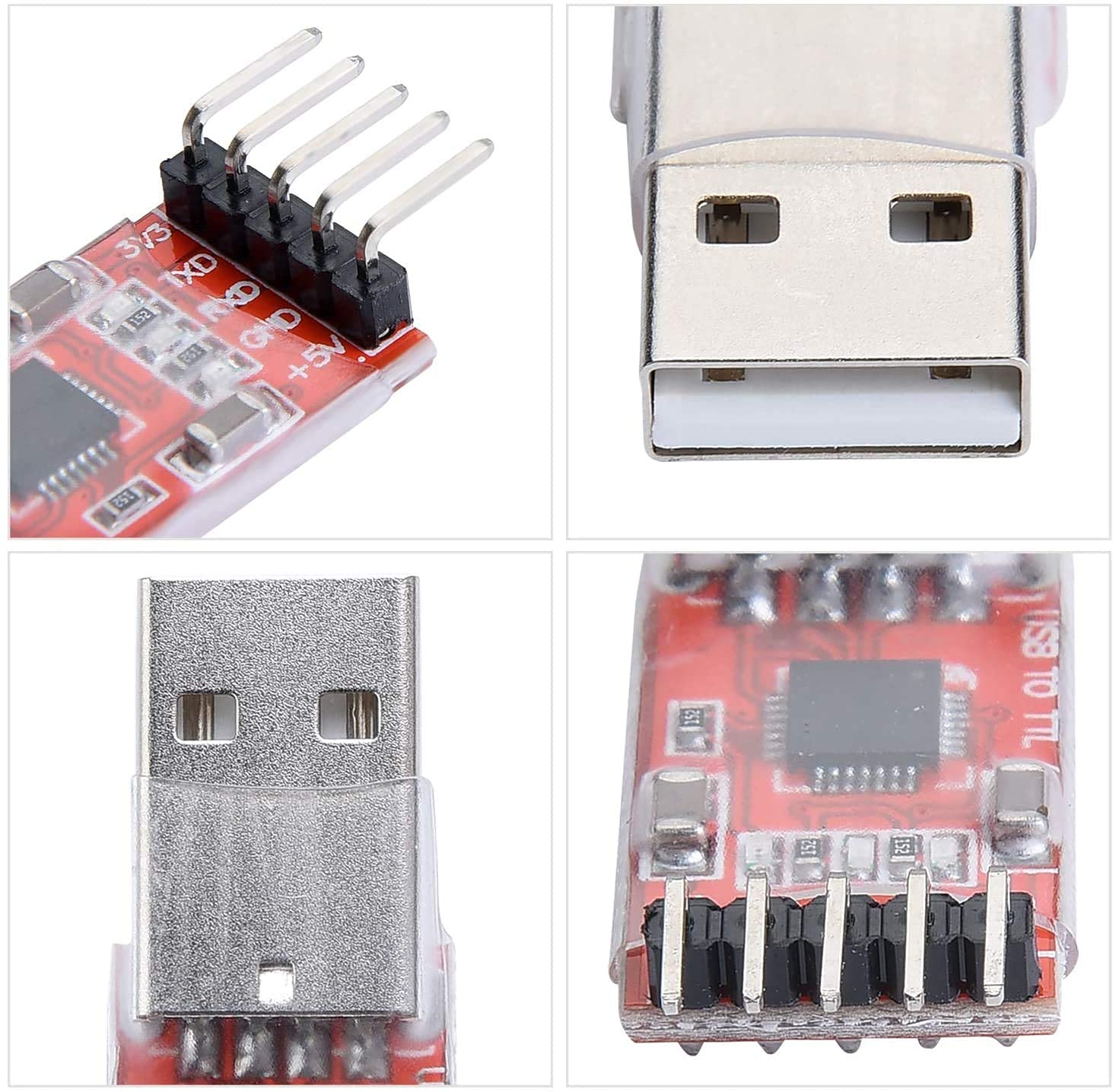

CP2102 chip is a single chip USB to UART bridge IC. It requires minimal external components. CP2102 can be used to migrate legacy serial port based devices to USB. Features: Stable and reliable chipset CP2102. USB specification 2.0 compliant with full-speed 12Mbps. Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & 5V. Baud rates: 300 bps to 1.5 Mbps Byte receive buffer; 640 byte transmit buffer. Hardware or X-On/X-Off handshaking supported. Event character support Line break transmission. USB suspend states supported via SUSPEND pins. Temperature Range: -40 to +85. Size: 42mm
